8-Channel Video Installation Kit | Data, ST, SM
8-Channel Video Installation Kit | Data, ST, SM
SKU:FVMTR8A05A
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability

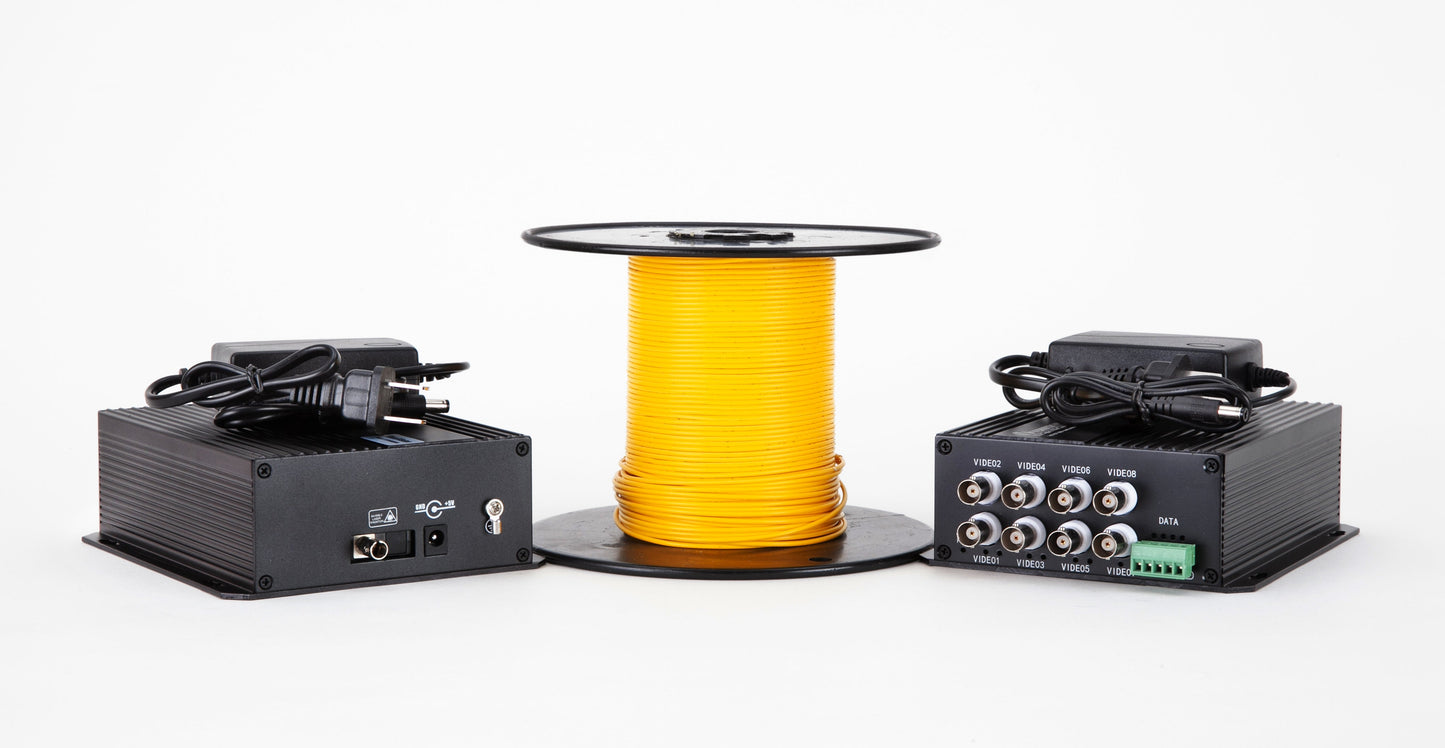

The FVMTR8A05A installation kit includes 8-channel video transmitter and receiver devices for converting an analog CCTV signal over fiber. These units also support 1-channel bi-directional data. Power supplies and 100 meters of Singlemode fiber cable are also provided.
FVMTR8A05A: 8-Channel Digital Fiber Optic Video Converter Installation Kit
VERSITRON’S VersiVision Product Series
Everything you need in a complete package for connecting your analog camera to your monitoring equipment. The FVMTR8A05A supports 8-bit digitally encoded broadcast quality video over one singlemode optical fiber. The transmitter and receiver modules are directly compatible with NTSC, PAL, and SECAM camera systems and support RS-485 data protocols. RS-232 and RS-422 data are available upon request. Use this VersiVision product with your PTZ cameras requiring return data.
*All VersiVision Installation Kits include: Transmitter, Receiver, Power Supplies & 100 Meters of Fiber.
ST optical connectors are standard for both standalone and rackmount versions. For applications requiring several receiver units at your monitoring site, we offer an 18-Slot rackmount chassis that fits a standard 19" rack.
Technical Specifications of FVMTR8A05A: 8-Channel Digital Fiber Optic Video Converter
Video Input
2 Volt pk-pk (75 Ohms)
Input/Output Channels
8
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Video Connector
BNC
Optical Connector
ST
Power Supply
5VDC, 2A
Data Interface
RS-485 (RS-422, RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
One Bi-Directional
Bit Error Rate
10⁻⁹
Data Contact
Screw Terminal Strip
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.
As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
Key Features of FVMTR8A05A: 8-Channel Digital Fiber Optic Video Converter
- 8-Bit Uncompressed Video Transmission
- NTSC, PAL, or SECAM Camera System Compatible
- RS-485 Data Protocol
- RS-232, RS-422 Available Upon Request
- Transmit up to 30km without Optical Attenuation
- WDM Technology for Higher Reliability No EMI, RFI, Cross Talk, or Video Distortion No Electrical or Optical Adjustments Required LED Indicators for Instant System Monitoring Hot-Pluggable Standalone or Rackmount in FVC18 Chassis VersiVision Chassis
8-Channel Video Installation Kit (FVMTR8A05A) is used across the following Applications:
High-Density PTZ Surveillance Systems
- Control of multiple PTZ cameras via RS-485
- 8-channel video transmission over a single fiber
- Centralized monitoring of large camera networks
- Efficient multi-camera deployment over long distances
City-Wide Surveillance Networks
- Aggregation of multiple street cameras into one link
- Long-distance fiber transmission across urban areas
- Centralized control room monitoring
- PTZ camera control via data channel
Highway & Traffic Monitoring Systems
- Monitoring multiple lanes and intersections
- Long-range transmission between roadside units and control centers
- PTZ control for dynamic traffic observation
- Reliable fiber backbone for traffic management
Railway Network Surveillance
- Multi-camera monitoring along rail tracks
- Centralized video aggregation from remote stations
- RS-485 control of PTZ trackside cameras
- Long-distance fiber communication
Airport Surveillance Systems
- Monitoring of runways, terminals, and perimeter zones
- Aggregation of multiple camera feeds over one fiber
- PTZ camera control for wide-area coverage
- Centralized airport security monitoring
Oil & Gas Facility Monitoring
- Multi-camera monitoring of large industrial sites
- Long-distance transmission between control rooms and field units
- PTZ control for critical asset inspection
- Reliable fiber communication in harsh environments
Power Grid & Substation Surveillance
- Monitoring multiple substations and equipment zones
- Long-distance video transmission over singlemode fiber
- Centralized grid monitoring systems
- PTZ camera control for detailed inspection
Border Security Monitoring Systems
- Surveillance of extended border areas with multiple cameras
- Long-range transmission to central command centers
- PTZ control for dynamic monitoring
- Efficient multi-camera aggregation over fiber
Large Campus Surveillance Networks
- Connecting multiple buildings via fiber backbone
- Centralized monitoring of 8 camera feeds
- PTZ control for flexible surveillance coverage
- Scalable system for campus expansion
Industrial Plant Surveillance Systems
- Monitoring large-scale production areas
- Fiber transmission immune to EMI interference
- Centralized viewing of multiple camera zones
- PTZ control for operational visibility
Seaport & Logistics Hub Monitoring
- Monitoring cargo handling and dock areas
- Long-distance transmission across port facilities
- Aggregation of multiple camera feeds
- Centralized security operations
Military & Defense Surveillance Systems
- Secure monitoring of large defense installations
- Long-distance fiber communication links
- Multi-camera aggregation for wide coverage
- PTZ control for tactical surveillance
Remote Facility Monitoring Systems
- Monitoring multiple remote sites from one control center
- Long-distance video transmission over singlemode fiber
- Centralized video aggregation of 8 channels
- Reliable communication infrastructure
Smart City Surveillance Infrastructure
- Integration of multiple urban surveillance cameras
- Centralized monitoring via fiber backbone
- PTZ control for dynamic city monitoring
- Efficient high-channel video transport
Warehouse & Distribution Monitoring
- Monitoring large warehouse operations with multiple cameras
- Centralized video management systems
- Long-distance fiber connectivity across facilities
- Improved operational visibility
Perimeter Surveillance for Large Facilities
- Monitoring extended perimeter areas
- Aggregation of multiple camera feeds into one fiber link
- Centralized monitoring systems
- Reliable long-distance connectivity
Multi-Building Video Integration Systems
- Connecting multiple buildings with a fiber backbone
- Transmission of 8 video channels over one fiber
- Centralized monitoring in control rooms
- Efficient infrastructure utilization
Rack-Mounted Central Monitoring Systems
- Integration into 19" rackmount chassis systems
- Centralized receiver deployment
- Scalable multi-channel video systems
- Efficient control room installations
Versitron is one of the leading FVMTR8A05A 8-Channel Video Installation Kit manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
