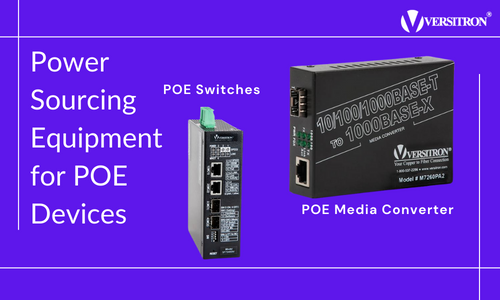

Choosing the Right Power Sourcing Equipment for PoE Devices

Power over Ethernet (PoE) allows Ethernet networks to deliver both data and electrical power over the same network cable. This can simplify the installation of devices such as IP cameras, wireless access points, VoIP phones, access-control equipment, and other powered network devices.

A successful PoE installation requires more than simply choosing a switch with PoE ports. The equipment providing power must have the appropriate PoE capabilities, sufficient power capacity, compatible ports, and enough reach for the intended application.

This is where Power Sourcing Equipment (PSE) becomes important.

What Is Power Sourcing Equipment (PSE)?

Power Sourcing Equipment, or PSE, is the network equipment that supplies electrical power to a Powered Device (PD) over an Ethernet connection.

The PSE can also transmit network data to the connected device. This allows a single Ethernet cable to carry both data and power.

Common examples of PSE equipment include:

• PoE switches
• PoE injectors
• PoE-enabled media converters
• Certain PoE extenders and specialized network devices

The appropriate PSE depends on the number of devices being powered, their power requirements, network topology, transmission distance, available interfaces, and other installation requirements.

What Is a Powered Device (PD)?

A Powered Device, or PD, is the device receiving power through the PoE connection.

Common PoE-powered devices include:

• IP surveillance cameras
• Wireless access points
• VoIP phones
• Access-control devices
• Industrial Ethernet devices
• IoT equipment
• Other compatible network endpoints

The PD has a specified power requirement. The PSE must be capable of supplying the required power while remaining within its own power budget.

Understanding the relationship between the PSE and PD is one of the most important steps in designing a reliable PoE network.

How Does PoE Work?

In a typical PoE connection, the PSE detects and communicates with a compatible powered device before delivering power according to the applicable PoE standard and device requirements.

The Ethernet connection then carries both network traffic and electrical power.

IEEE PoE standards include:

• IEEE 802.3af — commonly referred to as PoE
• IEEE 802.3at — commonly referred to as PoE+
• IEEE 802.3bt — includes higher-power PoE classes commonly referred to as 4-pair PoE

The amount of power available to the connected device depends on the PoE standard, power class, PSE capabilities, and other factors.

This means that simply seeing the word "PoE" on a product specification is not enough. The power requirements of the PD and the capabilities of the PSE must be evaluated together.

What Are the Common Types of PoE PSE?

Different types of PSE equipment are appropriate for different network designs.

PoE Switches

A PoE switch combines Ethernet switching with PoE power delivery.

This makes PoE switches particularly useful when multiple powered devices need to be connected to the same network.

For example, a surveillance installation might use a PoE switch to connect multiple IP cameras while providing power to each camera through its Ethernet connection.

PoE switches can be managed or unmanaged.

Managed PoE switches may provide additional capabilities such as:

• VLAN configuration
• QoS
• Port monitoring
• Power management
• Port security
• Network diagnostics
• Link aggregation
• Traffic control

Unmanaged PoE switches may be appropriate for simpler installations where advanced network configuration is not required.

PoE Media Converters

A PoE media converter can be useful when a network needs to combine fiber optic connectivity with copper Ethernet and PoE.

For example, a fiber link can carry data to a remote location, where a PoE media converter provides an RJ45 Ethernet connection to a powered device.

This can be useful for applications such as:

• Remote IP cameras
• Long-distance surveillance networks
• Building-to-building connections
• Industrial networks
• Security systems
• Remote Ethernet devices

When selecting a PoE media converter, check the supported fiber interface, copper Ethernet speed, PoE standard, power output, fiber distance, and environmental specifications.

PoE Injectors

A PoE injector adds power to an Ethernet connection without requiring the network switch itself to provide PoE.

This can be useful when an existing non-PoE switch needs to power one or a small number of compatible devices.

A typical installation may look like:

Network Switch → PoE Injector → Ethernet Cable → Powered Device

A PoE injector can therefore be a practical alternative to replacing an existing switch when only a limited number of PoE devices need to be deployed.

PoE Extenders

PoE extenders are used when the distance between the PSE and PD exceeds the normal Ethernet cabling distance.

A PoE extender receives the Ethernet data and power and extends the connection to the remote powered device.

The achievable distance depends on the particular extender, cable type, data rate, power requirements, and installation conditions. Some solutions can extend PoE significantly beyond the traditional 100-meter Ethernet segment, but the manufacturer's specifications should always be used when designing the installation.

How Do You Choose the Right PoE PSE?

Selecting the correct PSE requires more than counting the number of PoE ports.

The following factors should be evaluated before purchasing equipment.

1. Determine the Number of Powered Devices

Start by determining how many PDs will be connected.

For example, a small installation might require power for only two IP cameras, while a larger surveillance system might need dozens of cameras.

A PoE switch with four PoE ports may be sufficient for the first application but completely inadequate for the second.

Also consider future expansion. Installing a switch with some additional capacity can prevent an immediate equipment replacement when more devices are added.

2. Calculate the PoE Power Budget

The total PoE power budget is one of the most important specifications on a PoE switch.

Suppose an installation has eight cameras and each camera requires up to 15 watts.

The theoretical maximum device load would be:

8 × 15 W = 120 W

The selected PSE should have sufficient available PoE power for the expected load while accounting for the device specifications and the switch manufacturer's power budget.

Do not confuse the switch's total electrical power consumption with its available PoE power budget. These are different specifications.

3. Check the PD's Power Requirement

Every powered device has its own power requirements.

Before selecting a PSE, determine:

• Required PoE standard
• Maximum power consumption
• Power class, where applicable
• Required voltage characteristics
• Whether the device supports standard IEEE PoE

A higher-capacity PSE does not automatically mean every connected device will consume the maximum available power. The actual power delivered depends on the PoE negotiation and device requirements.

4. Verify PoE Standard Compatibility

PoE equipment should be selected according to the applicable IEEE PoE standard and the capabilities of both the PSE and PD.

Common standards include:

The actual power available at the PD is lower than the power supplied at the PSE because some power is lost in the Ethernet cable.

For that reason, designers should evaluate the complete PSE-to-PD power path rather than looking at the PSE specification alone.

5. Consider the Network Distance

Standard copper Ethernet connections have a typical maximum channel length of approximately 100 meters.

If the powered device is located farther away, a conventional PoE switch may not be sufficient by itself.

Depending on the application, possible solutions include:

• PoE extenders
• Fiber optic links with a PoE media converter at the remote end
• Intermediate network equipment
• A different network architecture

Fiber can be particularly useful when a remote camera or other powered device must be located hundreds or thousands of meters from the network's central equipment.

In these applications, fiber carries the data over the long-distance portion of the link while a suitable PoE device at the remote location provides power to the endpoint.

6. Determine Whether Fiber Is Required

Fiber connectivity can be an important consideration when designing a PoE network.

For example:

Fiber → PoE Media Converter → Copper Ethernet → IP Camera

This architecture allows the long-distance network connection to use fiber while the final connection to the camera uses standard copper Ethernet with PoE.

Fiber may also provide benefits in environments where electrical isolation or immunity to electromagnetic interference is important.

7. Choose the Appropriate Number and Type of Ports

The PSE should provide the interfaces required by the network.

Consider:

• Number of PoE ports
• Copper Ethernet speed
• SFP or SFP+ uplinks
• Fiber type
• Fiber transmission distance
• Required uplink bandwidth
• PoE capability per port

For example, a surveillance system might need multiple RJ45 PoE ports for cameras and one or more fiber uplinks to connect the switch to the network backbone.

8. Consider Managed vs. Unmanaged Operation

A managed PoE switch provides significantly more control over the network than an unmanaged switch.

Depending on the model, managed PoE switches may allow administrators to monitor ports, configure VLANs, manage traffic, prioritize applications, troubleshoot connections, and control other network functions.

Unmanaged PoE switches can be a good choice when the network only requires straightforward connectivity and power delivery.

The appropriate choice depends on the complexity of the installation.

9. Consider the Installation Environment

The physical environment can be just as important as the electrical specifications.

For commercial installations, a standard indoor switch may be appropriate.

Industrial or outdoor deployments may require equipment designed for:

• Extended temperature ranges
• Vibration
• Dust
• Electrical noise
• Harsh industrial environments
• Outdoor enclosures

An industrial PoE switch or PoE media converter may therefore be more appropriate than a commercial device in demanding environments.

10. Plan for Future Expansion

A PoE installation should be designed with future requirements in mind.

Consider whether the network may eventually need:

• Additional cameras
• More wireless access points
• Higher-power devices
• Faster Ethernet
• Additional fiber uplinks
• More PoE ports

Planning for growth can make the original installation more useful over its service life.

PSE Power Budget vs. PD Power Requirement

One of the most common mistakes when selecting PoE equipment is confusing the PSE's power budget with the amount of power required by an individual PD.

For example, a switch might have a total PoE budget of 240 watts and 24 PoE ports.

That does not necessarily mean the switch can deliver 240 watts to every port.

The 240 watts represents the total power available to the connected PoE devices, subject to the switch's specifications and port-level limits.

The designer should therefore evaluate both:

Total PoE power budget

and

Maximum power available per port

This is particularly important when deploying high-power cameras, wireless access points, lighting equipment, or other devices with significant power requirements.

Why Use PoE Instead of Separate Power Cabling?

PoE can simplify network installations by allowing one Ethernet cable to provide both data connectivity and power.

This can reduce the need to install a separate electrical outlet near every powered network device.

PoE is particularly useful for devices installed in locations such as:

• Ceiling-mounted access points
• Security cameras
• Outdoor surveillance locations
• VoIP phones
• Access-control systems
• Remote network equipment

PoE does not eliminate the need for an electrical power source altogether. The PSE itself requires power, but the technology can simplify the final connection between the network equipment and powered endpoint.

Common PoE PSE Selection Mistakes

Several mistakes can lead to an unreliable PoE installation.

Choosing a switch based only on port count

A 24-port switch may have enough ports but insufficient PoE power capacity for all 24 connected devices.

Ignoring the PD's maximum power requirement

The PSE must be able to provide sufficient power for the connected device.

Assuming all PoE is the same

PoE, PoE+, and higher-power PoE technologies provide different power capabilities. The applicable standard and device requirements should be verified.

Ignoring cable distance

A PoE installation that exceeds the normal Ethernet distance may require an extender or a different architecture.

Forgetting uplink bandwidth

A switch may have enough PoE ports for all the cameras or access points but an undersized uplink can become a network bottleneck.

Selecting commercial equipment for an industrial environment

Temperature, electrical noise, vibration, and other environmental factors can affect equipment reliability.

Frequently Asked Questions

What is a PSE in a PoE network?

PSE stands for Power Sourcing Equipment. It is the equipment that supplies power over Ethernet to a compatible Powered Device, or PD. Common examples include PoE switches, PoE injectors, and PoE-enabled media converters.

What is the difference between PSE and PD?

The PSE supplies power, while the PD receives power. A PoE switch is an example of PSE equipment, while an IP camera or wireless access point can be a PD.

Is a PoE switch a PSE?

Yes. A PoE-enabled Ethernet switch functions as PSE equipment when it supplies power to compatible PoE devices.

Does a PoE switch provide enough power for every connected device?

Not necessarily. The switch has a total PoE power budget and may also have a maximum power limit for individual ports. The total requirements of the connected PDs must remain within the switch's capabilities.

How far can PoE travel?

Standard Ethernet cabling generally supports a maximum channel length of approximately 100 meters. Longer-distance PoE installations may require an extender, intermediate equipment, or a fiber-based architecture with PoE provided at the remote end.

Can fiber be used with PoE?

Yes. Fiber can carry the network data over a long-distance segment, while a PoE media converter or other suitable PSE at the remote end can provide copper Ethernet and power to the powered device.

Do PoE devices need to use the exact same PoE standard?

Compatibility depends on the capabilities of the PSE and PD and the applicable IEEE PoE standard. Standard-compliant equipment is designed to negotiate power appropriately, but the specific PSE and PD specifications should always be checked before deployment.

Should I use a PoE switch or PoE media converter?

A PoE switch is generally appropriate when multiple PoE devices need to connect to the same network location. A PoE media converter can be particularly useful when a remote PoE device needs to connect to a fiber optic network and receive power through copper Ethernet at the endpoint.

Versitron PoE Power Sourcing Equipment

Versitron offers PoE switches, PoE media converters, and other fiber optic networking equipment for commercial and industrial applications.

Depending on the model, Versitron PoE equipment can combine copper Ethernet connectivity with fiber optic interfaces, allowing network designers to deploy powered Ethernet devices while using fiber for longer-distance network connections.

PoE solutions can be used for applications including:

• IP surveillance
• Wireless networking
• Industrial Ethernet
• Security systems
• Building networks
• Remote Ethernet devices
• Fiber-to-copper network extensions

When selecting a PoE PSE, Versitron can help determine the appropriate combination of PoE power, Ethernet ports, fiber interfaces, transmission distance, and environmental specifications for the application.

Conclusion

Choosing the right Power Sourcing Equipment is an important part of designing a reliable PoE network.

The decision should be based on more than the number of ports. Consider the number and type of powered devices, PoE standard, total power budget, maximum power per port, Ethernet distance, fiber requirements, uplink capacity, management features, environmental conditions, and future expansion.

PoE switches are often the best choice for centralized installations with multiple powered devices. PoE injectors can add power to individual Ethernet connections, while PoE media converters and extenders can provide useful solutions for remote or fiber-based deployments.

By matching the PSE to the actual requirements of the Powered Devices and the network architecture, you can build a PoE system that provides reliable connectivity and power while leaving room for future expansion.
