VersiVision
FVTM800x/FVRM800x
8-Channel Fiber Optic Video Multiplexer
Digitally Encoded
|
|
|
The VERSITRON VersiVision Series multiplexers simultaneously transmit eight channels of 8-bit digitally encoded broadcast quality video over one multimode or singlemode optical fiber.
The modules are directly compatible with NTSC, PAL or SECAM CCTV camera systems. These multiplexer units are typically used in applications that have fixed cameras.
|
|

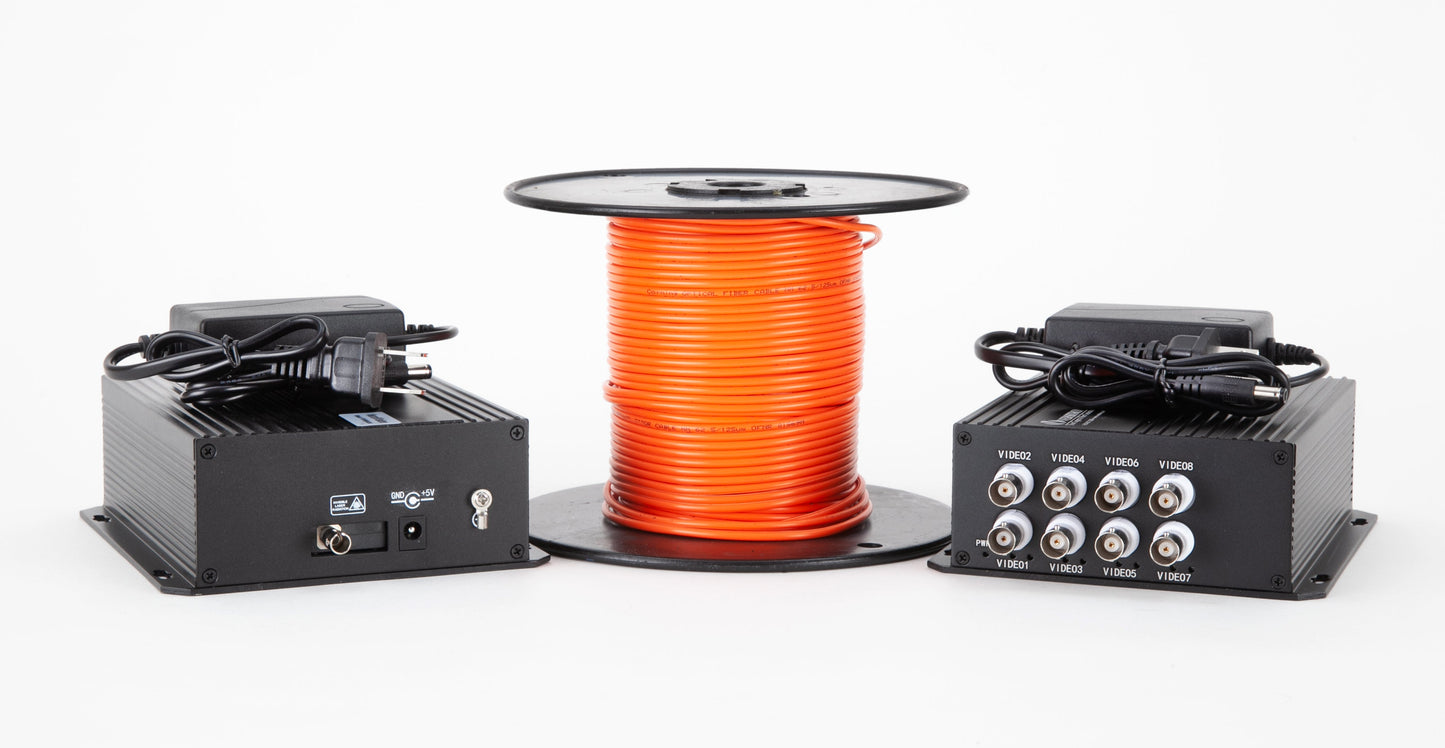

Plug and Play design ensures ease of installation and operation. Electronic and optical adjustments are never required. The units incorporate LED indicators for monitoring the power and video operating status. A typical installation utilizes an 8-channel transmitter unit at the camera end of the link, connected via a single fiber optic cable, to an 8-channel receiver unit at the monitoring end of the link. Devices are available for either standalone or rack-mount installation.
As with all VERSITRON products, these video transmitters carry a lifetime warranty.
Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you. |
KEY FEATURES
- 8-Bit Digitally Encoded Video Transmission
- Compatible with NTSC, PAL, or SECAM CCTV
- Transmit up to 30km without Optical Attenuation
- Wide Optical Dynamic Range
- No EMI, RFI Cross Talk, and Video Distortion
- LED Indicators for Instant System Monitoring
- No Electrical or Optical Adjustments Required
- Standalone or Rackmount
|
| |
|
 |
SPECIFICATIONS
| Video Input: |
1 volt pk-pk (75 ohms) |
| Input/Output Channels |
4 |
| Bandwidth: |
5 Hz - 8 MHz |
| Bit Resolution: |
8-bit |
| Differential Gain: |
< 2% |
| Differential Phase: |
< 0.6% |
| Tilt: |
< 1% |
| S/N Ratio: |
67dB (Weighed) |
| Wavelength: |
Multimode 850nm
Singlemode 1310nm |
| Optical Emitter: |
Laser Diode
|
| Connectors: |
|
| Optical: |
ST, SC (FC Optional)
|
Video:
|
BNC |
| Number of Fibers: |
1 |
| Power Supply: |
AC 110 / 220v |
| Size: |
18.98 x 9.76 x 1.77 inches |
| Construction |
Aluminum |
| Finish |
Paint |
| MTBF: |
> 100,000 hours |
| Operating Temp: |
-30° C to + 50°C |
| Storage Temp: |
-40° C to +85°C |
| Relative Humidity: |
0% to 95% (non condensing) |
|
| Model |
Function |
Connector |
Fiber Cable |
Wavelength |
Max Distance |
| FVTM8003 |
Transmitter |
ST Simplex |
MM |
850nm |
3 km |
| FVRM8003 |
Receiver |
ST Simplex |
MM |
850nm |
3 km |
| FVTM8004 |
Transmitter |
SC Simplex |
MM |
850nm |
3 km |
| FVRM8004 |
Receiver |
SC Simplex |
MM |
850nm |
3 km |
| FVTM8005 |
Transmitter |
SC Simplex |
SM |
1310nm |
30 km |
| FVRM8005 |
Receiver |
SC Simplex |
SM |
1310nm |
30 km |
|
|
|
|
