VersiVision
FDVT/FDVR1AAx-AE
1-Channel Fiber Optic Video Converter
1-Channel Bi-Directional Data
1-Channel Bi-Directional Audio
1-Channel Bi-Directional Contact Closure
10/100 Ethernet Capability
Digitally Encoded
|
|
|
For those demanding applications requiring a "feature-rich" fiber optic video converter, consider our VersiVision FDVT/FDVR1AAx-AE products. Not only do these devices support NTSC, PAL, and SECAM camera systems, they provide additional signaling capability for bi-directional data, audio, and contact closure as well as 10/100 Ethernet.
And, as with all VersiVision Series video transmitters and receivers, this is achieved using 8-bit digitally encoded video technology over one multimode or singlemode optical fiber. LED indicators are provided to instantly monitor the system operating status.
|
|

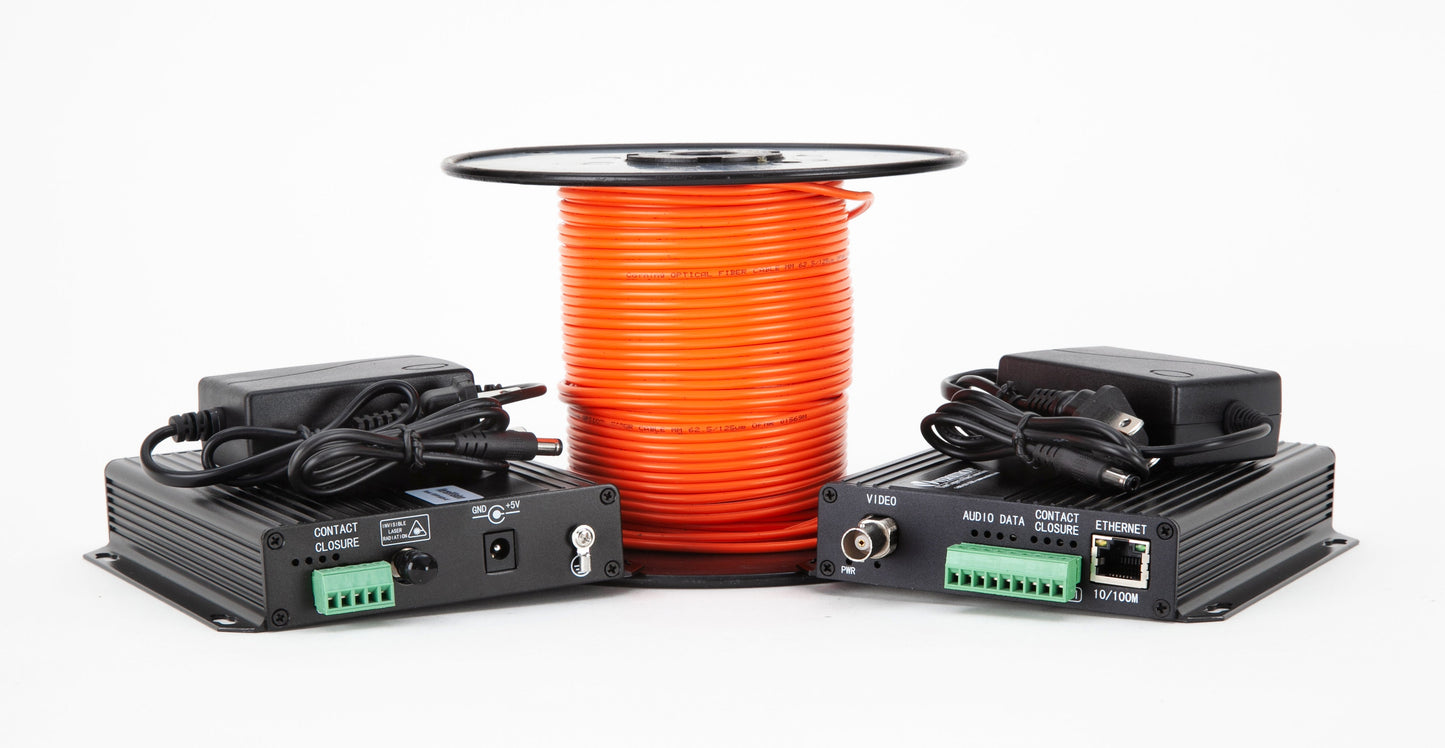

| Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link. Devices are available for either standalone or rackmount installation with the FVC14 Chassis.
Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to speaking with you. |
KEY FEATURES
- 8-Bit Uncompressed Video Transmission
- 24-Bit Digitally Encoded Audio
- 10/100 Ethernet
- NTSC, PAL, or SECAM Camera System Compatible
- RS-232, RS-422, or RS-485 Data Protocols
- Transmit up to 30km without Optical Attenuation
- WDM Technology for Higher Reliability
- No EMI, RFI, Cross Talk, or Video Distortion
- No Electrical or Optical Adjustments Required
- LED Indicators for Instant System Monitoring
- Standalone or Rackmount in FVC14 Chassis
|
| |
|
SPECIFICATIONS
| Video Input: |
1 volt pk-pk (75 ohms) |
| Input/Output Channels |
1 |
| Bandwidth: |
5 Hz - 8 MHz |
| Bit Resolution: |
8-bit |
| Differential Gain: |
< 2% |
| Differential Phase: |
< 0.6° |
| Tilt: |
< 1% |
| S/N Ratio: |
67dB (Weighed) |
| Data Interface: |
RS-232, RS-422, RS-485 |
| Data Rate: |
100Kbps |
| Data Channels: |
(1) Bi-Directional |
| Bit Error Rate: |
10-9 |
| Contact Closure: |
24vAC, 1A Max (Normally Open) |
| Audio Channels: |
(1) Bi-Directional |
| Audio Impedence: |
600 Ohms |
| Input/Output Level |
0dBM (typical) |
| Frequency Response: |
10HZ-20KHZ |
| Bit Resolution: |
24-bit |
| S/N Ratio: |
88dB |
| Wavelength: |
Multimode 850/1310nm
Singlemode 1310/1550nm |
| Optical Emitter: |
Laser Diode |
| Number of Fibers: |
1 |
| Ethernet: |
|
| Data Rate: |
10/100Mbps
|
Data Channels
|
1 |
| Connectors: |
|
| Optical: |
ST
|
Video
|
BNC |
Data/Audio/CC
|
Screw Terminal Strip |
Ethernet
|
Shielded RJ-45 |
| Power Supply: |
12VDC @ 1.5 A |
| Dimensions: |
7.87 x 8.03 x 1.16 inches |
| MTBF: |
> 100,000 hours |
| Operating Temp: |
-30° C to + 75°C |
| Storage Temp: |
-50° C to +85°C |
| Relative Humidity: |
0% to 95% (non condensing) |
|
| Model |
Function |
Connector |
Fiber Cable |
Wavelength |
Max Distance |
| FDVT1AA3-AE |
Transmitter |
ST Simplex |
MM |
850/1310nm |
3 km |
| FDVR1AA3-AE |
Receiver |
ST Simplex |
MM |
850/1310nm |
3 km |
| FDVT1AA5-AE |
Transmitter |
ST Simplex |
SM |
1310/1550nm |
30 km |
| FDVR1AA5-AE |
Receiver |
ST Simplex |
SM |
1310/1550nm |
30 km |
Note: ST-SC adapters are available for applications using SC fiber connectors.
|
|
|
